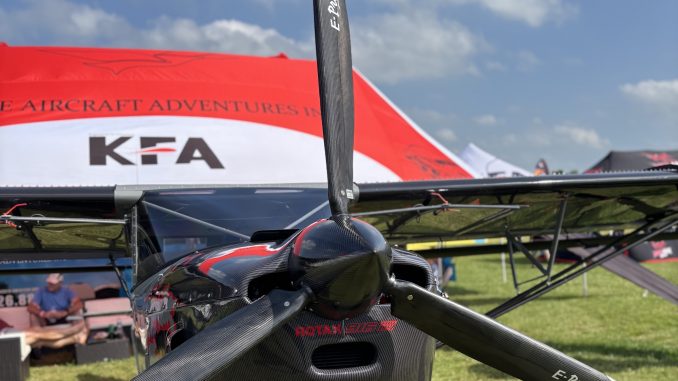

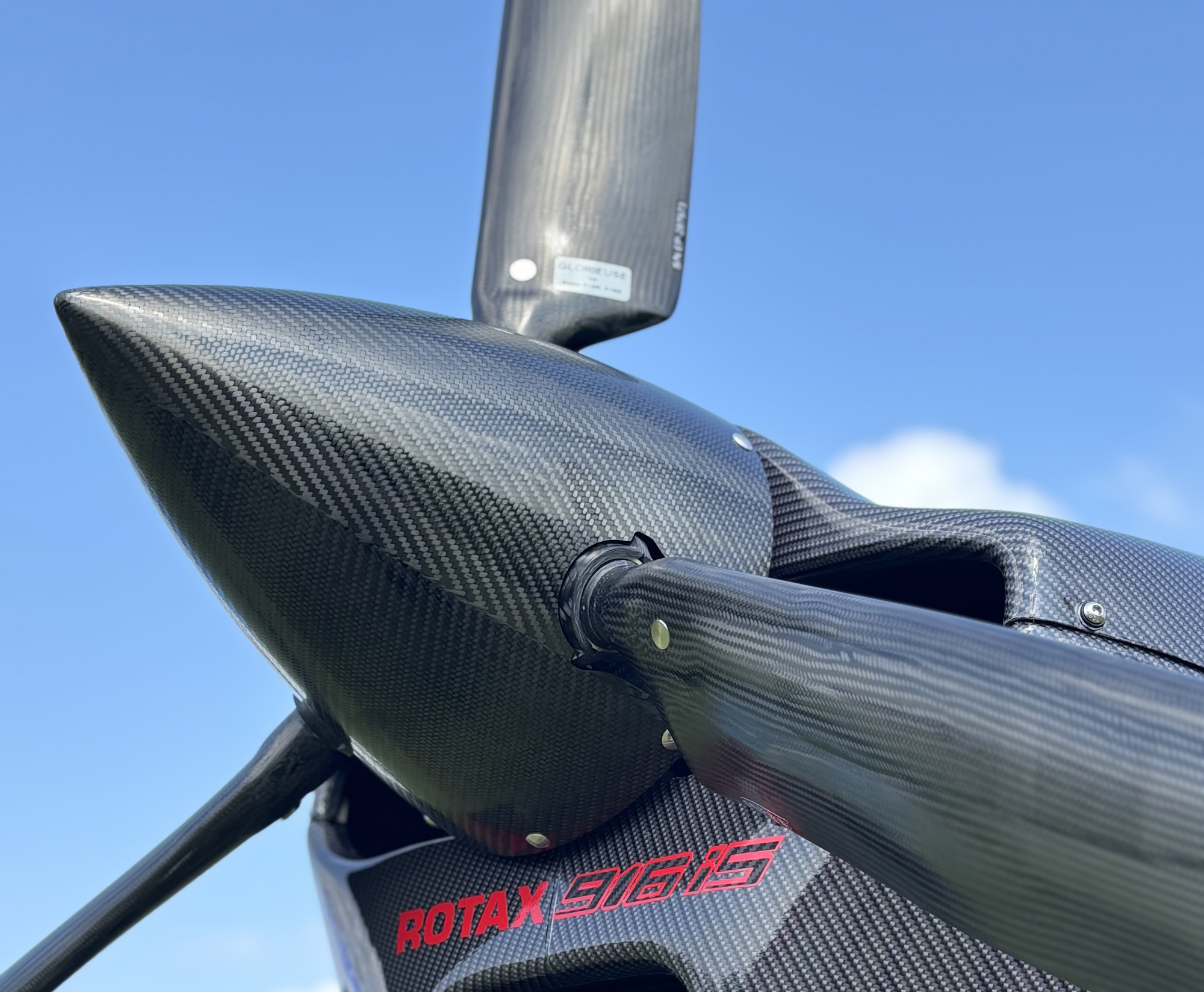

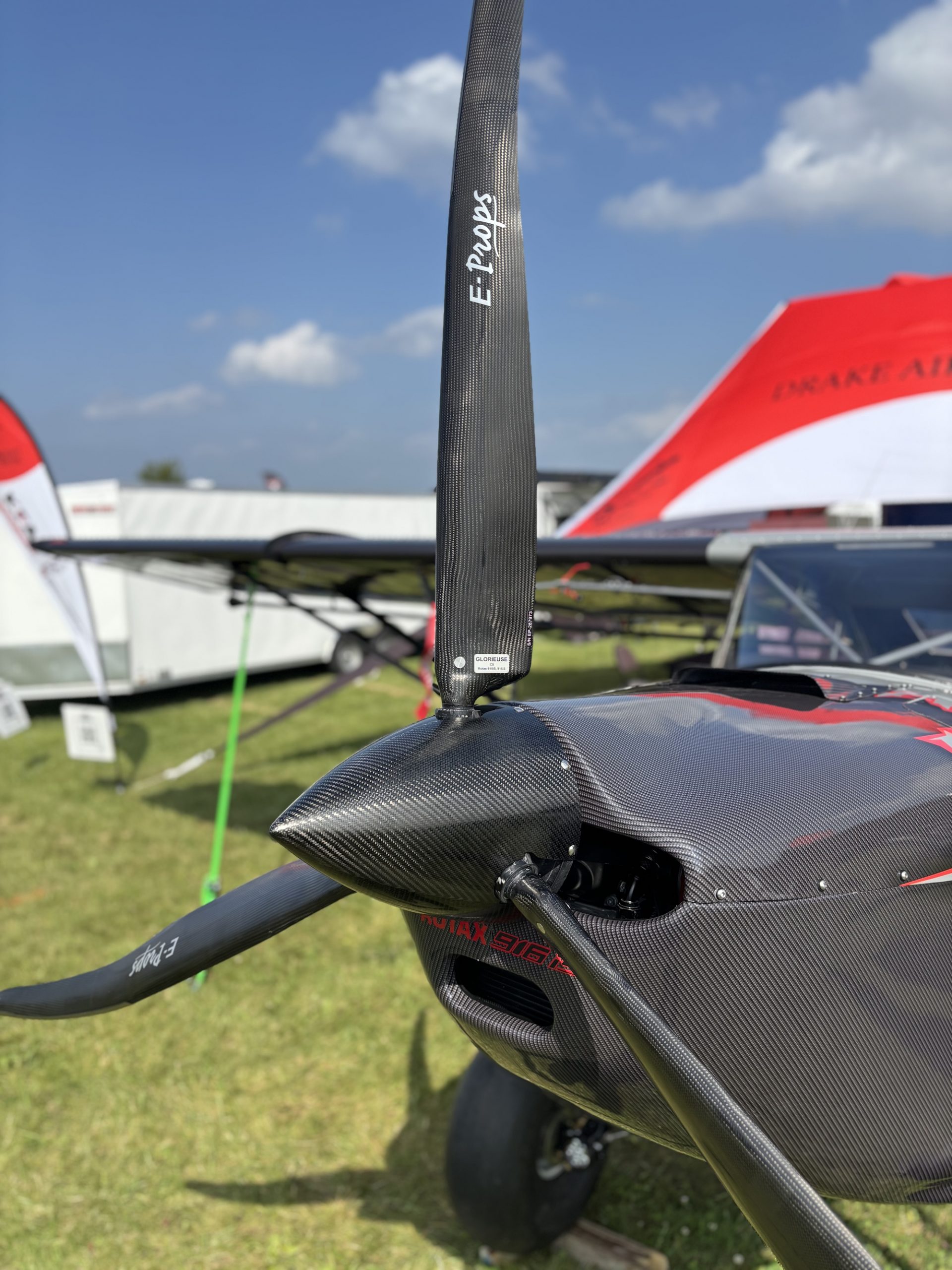

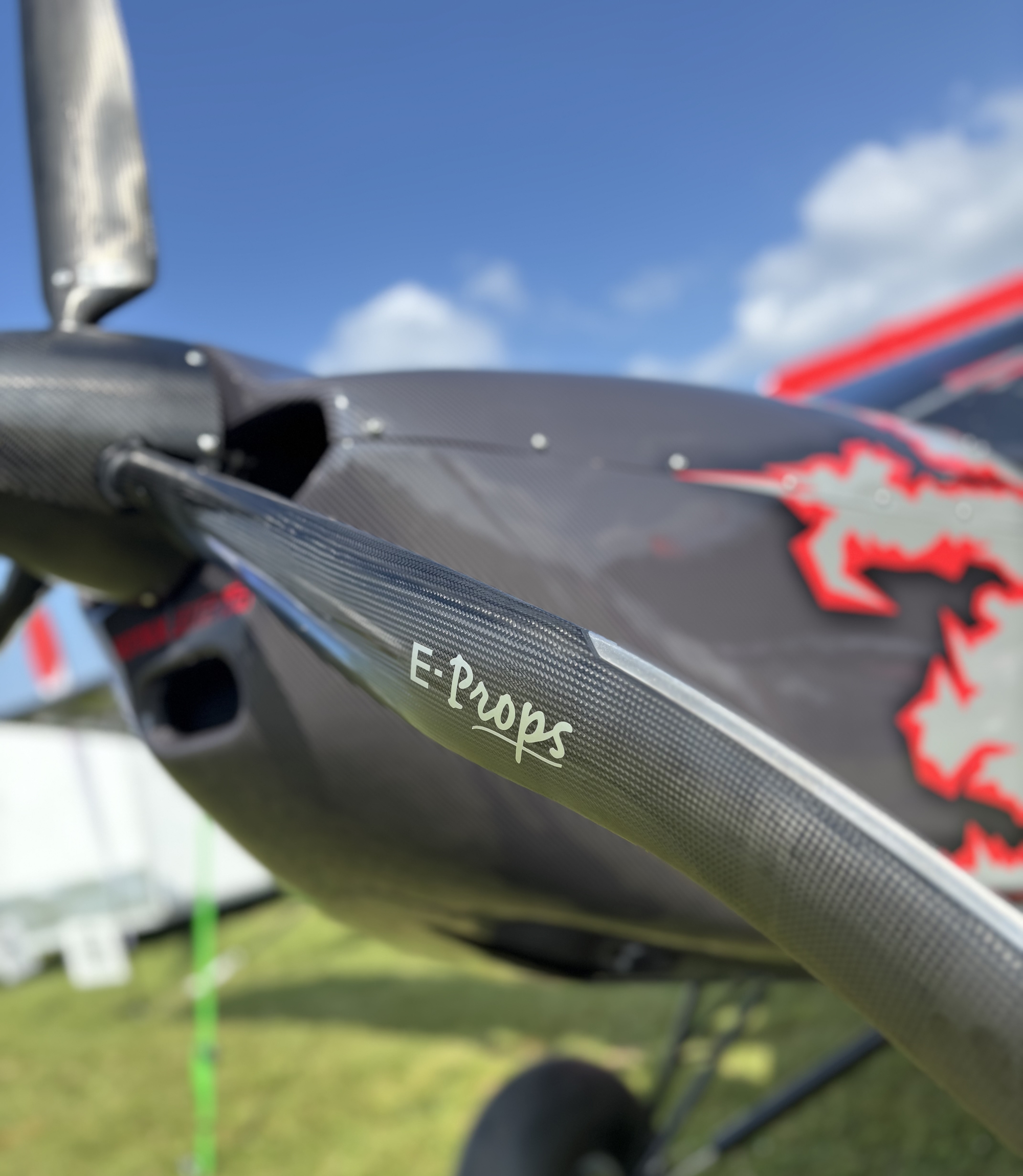

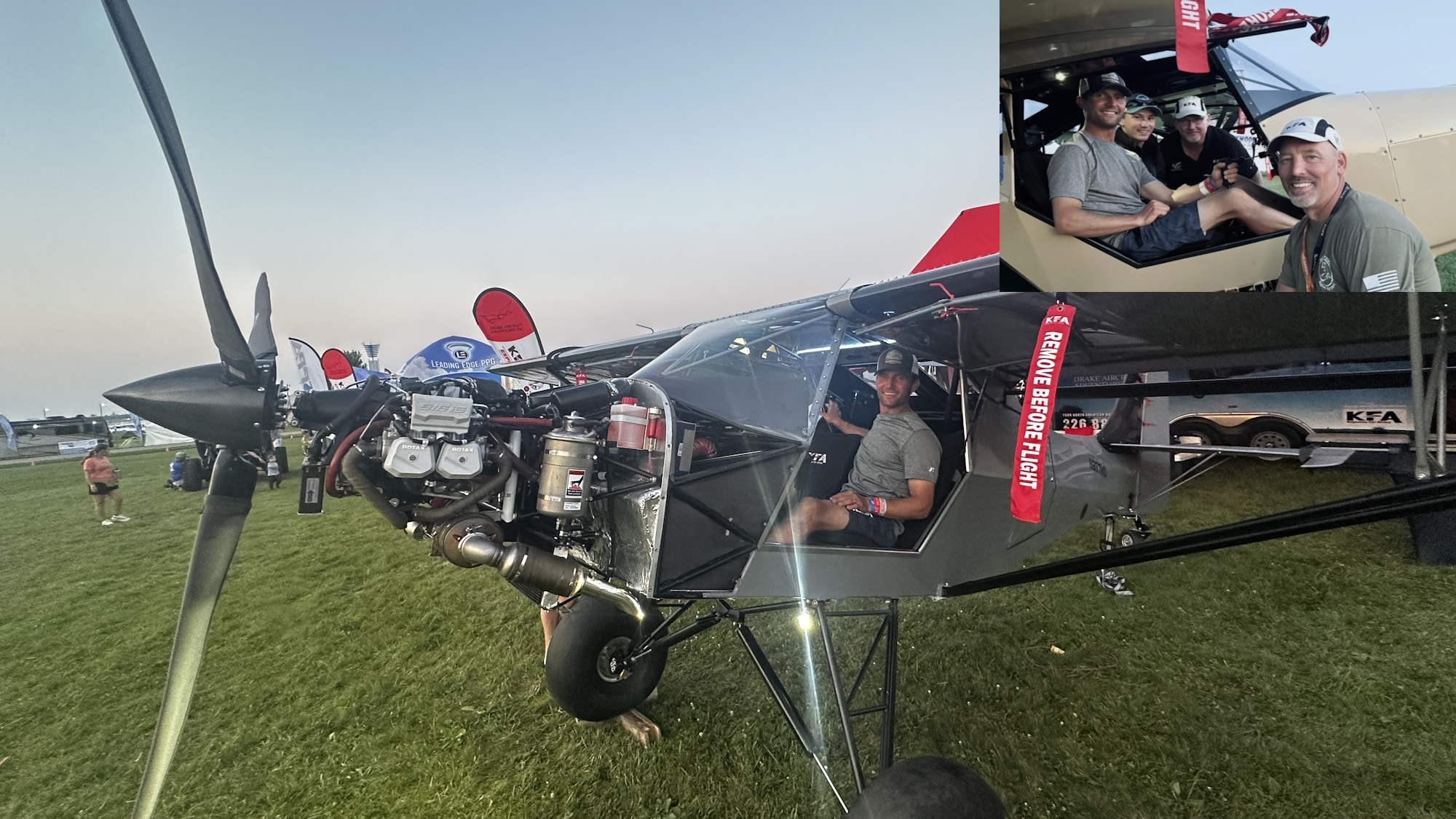

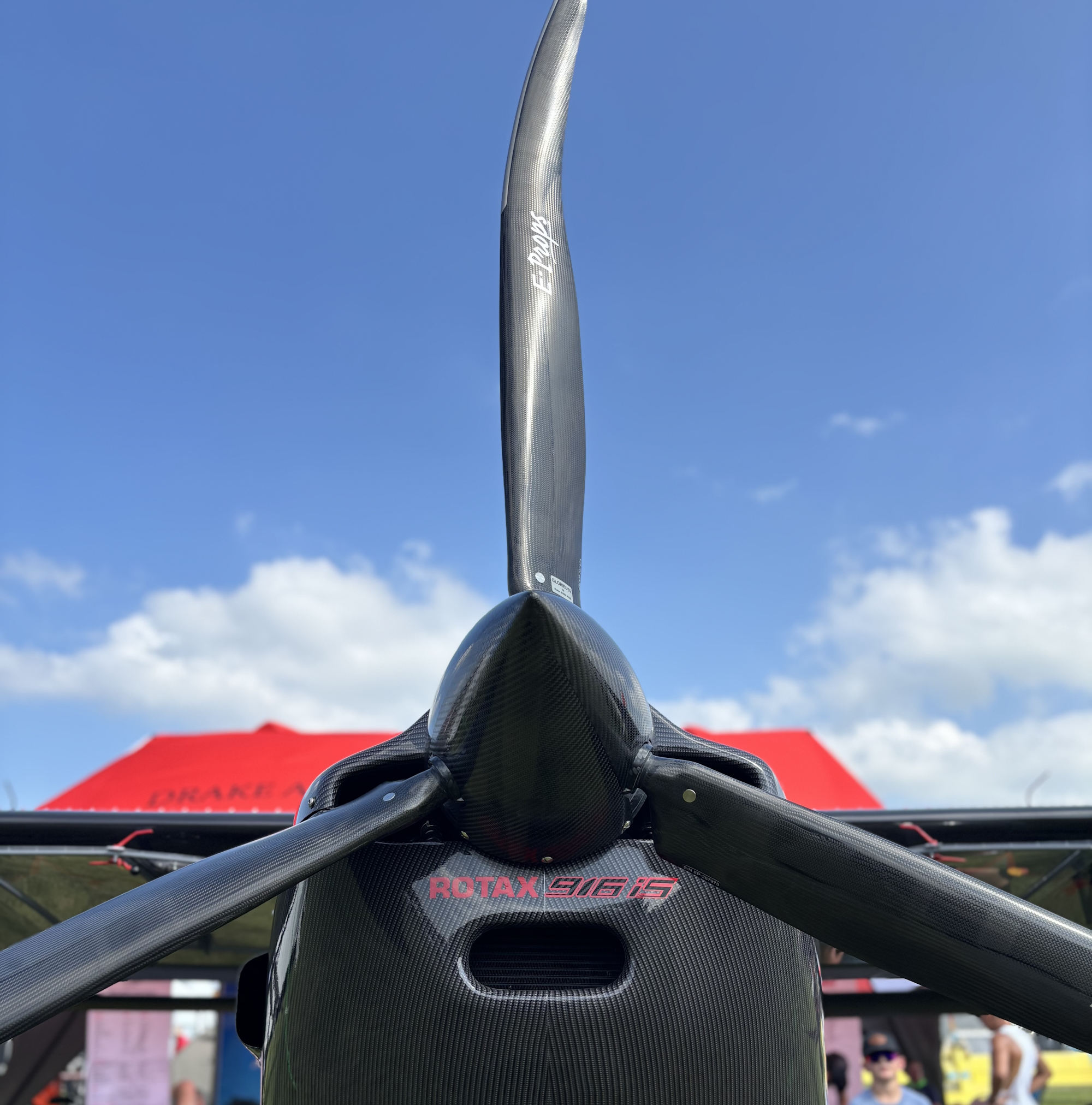

A great KFA SAFARI was on display at OSHKOSH 2025, with a Rotax 916iS engine and an E-Props Constant Speed Glorieuse diameter 210 cm / 82.7 inch, weight: 3.5 kg / 7.8 lb
Propeller GLORIEUSE
3-blade propellers, in-flight variable pitch system (Constant Speed), the lighest on the market
CARBON with TITANIUM leading edge protection
For KFA SAFARI Rotax 916iS gearbox 2.54
Diameter: 210 cm / 82.7 inch
Weight: 3.5 kg / 7.8 lb
Moment of Inertia: 3000 kg.cm²
Blades C9 for Rotax 915iS & 916iS
TBO = 2000 hrs
✗ Hydraulic actuator with electronic management : the robustness of the hydraulic actuator and the precision of the electronics
✗ No bearing = no jamming / No lubricant = no leakage
✗ Ultra-fast regulation: max pitch / min pitch in less than 3 seconds, without jerks or speed variations
✗ Safety stops min. pitch / max. pitch
✗ Pitch variation: max. range 16° (20° in option)
✗ Work with other governors (MT-Propellers, JIHOSTROJ…) and other regulators (FLYBOX APR-1, RS FLIGHT SYSTEMS…)
✗ Very strong : 100% carbon, very high fibers ratio, RTM Manufacturing
✗ No cyclic loading on aluminium components = no cracks
✗ Compliant with ASTM F2506-13 / EASA CS-P certification in progress
More data : GLORIEUSE
